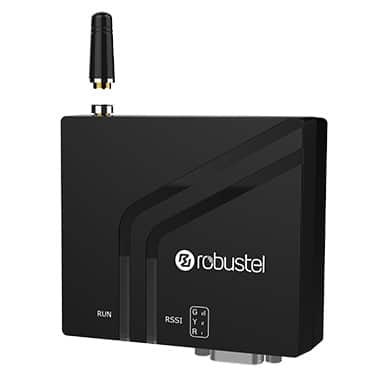

M1000 XP Gateway
M1000 XP is a cost effective, compact, easy-to-deploy, easy-to-scale intelligent 2G/3G modem optimized for M2M/IoT communications.
Introduction
Robustel GoRugged M1000 XP is a compact design serial to cellular gateway with plastic housing, offering state-of-the-art GSM/GPRS/UMTS connectivity for machine to machine (M2M) applications.
Key Features
- Auto GPRS/UMTS connect or reconnect (no AT commands required).
- AT Modem mode for optional.
- Featured SMS Direct mode which can transparently convert serial data to SMS or vice versa without using AT Commands. Verification of incoming Caller ID is implemented to block un-authorized users.
- Support CSD communication (only receive CSD call).
- Transparent TCP and UDP socket connections.
- Supports ICMP, DDNS, SNTP, Telnet.
- Supports Modbus RTU to Modbus TCP.
- Auto reboot via SMS/Caller ID/Timing.
- Various dial-up policies: Always Online/Connect on Demand.
- Supports RobustLink (Centralized M2M management platform).
- Configuration methods: RS232/USB/SMS/TCP/RobustLink.
- Support DI trigger sending SMS (optional) .
- Firmware upgrade via RS232/USB/TCP/RobustLink.
- Two tri-color LED indicators provide signal strength (RSSI) and running status.
- Watchdog for reliable communications.
- Wide range input voltages and extreme operating temperature.
- The plastic enclosure can be mounted on a DIN-rail or on the wall, also with extra ground screw.
Cellular Interface |
|
| Number of antennas | 1 (MAIN) |
| Connector | SMA Female |
| SIM | 1 x (3V & 1.8V) |
| Standards | GSM/DCS/PCS |
Serial Interface |
|
| Number of Ports | 1 x DB9 Female |
| Serial Standards | RS232 or RS485 |
| ESD Protection | 15KV |
| Baud Rate | 1200bps to 115200bps |
| RS-232 | TxD, RxD, RTS, CTS, GND |
| RS-485 | Data+ (A), Data- (B) |
USB Interface |
|
| Number of Ports | 1 x USB port for configuration |
| Standards | Mini USB |
System |
|
| LED Indicators | 2 tri-color LED indicators, RUN, 3 level RSSI |
| Real Time Clock | Built-in RTC with button battery |
| Watchdog and Timer | Built-in watchdog and timer |
Software |
|
| IP protocols | PPP, TCP, UDP, ICMP, DDNS, SNTP, Telnet |
| Serial Port | TCP client/server, UDP, Modbus RTU to Modbus TCP, Virtual COM (COM port redirector) |
| RobustLink | Centralized M2M management platform |
Power Supply and Consumption |
|
| Power Supply Interface | 2-pin 5mm pluggable terminal block |
| Input Voltage | 6 to 18 VDC |
| Power Consumption | Idle: 50-60 mA@12 V Data Link: 100 to 200 mA (peak)@12 V |
Physical Characteristics |
|
| Housing & Weight | Plastic, 105g |
| Dimension | (L x W x H): 75 x 85 x 28 mm |
| Installation | 35mm Din-Rail or wall mounting or desktop |
Regulatory and Type Approvals |
|
| Approval & Certification | CE, RoHS, WEEE |
Model No. |
Description |
Operating Environment |
Input Voltage |
| M1000-XP2GA | 1-port RS232, GPRS | -40 to 85°C/5 to 95% RH | 6 to 18 VDC |
| M1000-XP2GB | 1-port RS485, GPRS | -40 to 85°C/5 to 95% RH | 6 to 18 VDC |
